OUTlet

Choose performance:

OUTlet is a module complementary to the filtration devices. It enables air discharge following the filtration process.

CONFIGURE YOUR DEVICE ASK ABOUT A PRODUCT

Description

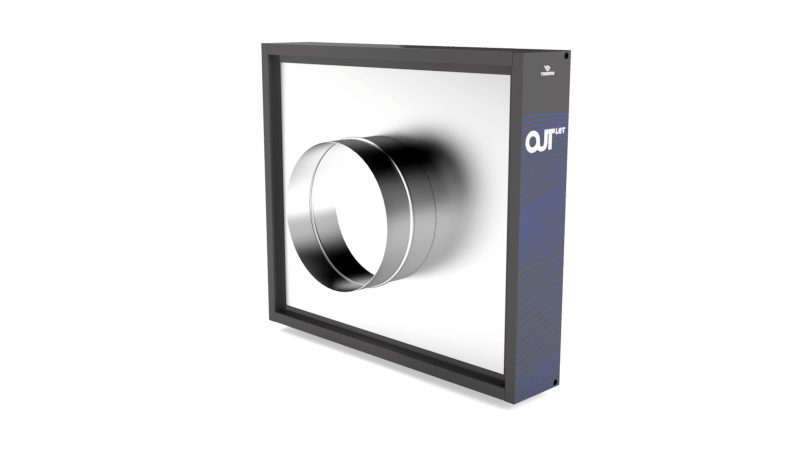

The OUTlet module is one of the THERMOtec filtration device modules. It is structurally designed for discharging air from the THERMOtec filtration assembly. It is a passive element, with no moving subassemblies or automation system fittings.

Purpose

The OUTlet module is to be installed with other THERMOtec modules. This is the last module of every series 6.0 and above filtration assembly. It is an air discharge component fitted with an appropriate connector.

Technical Data

The OUTlet module is available in the ranges shown in the table below.

ModelAir flowPower supplyPower consumptionFlow resistanceDevice dimensions
m³/hV ACWPa(W) x (H) x (L) mm
6.0400-800n/a05608x529x115
10.0800-1200n/a05795x682x115
16.01200-2000n/a051480x682x115

Equipment Configurations

Installation

OUTlet is always the last module of the entire filtration assembly. Through this module, air is discharged from the device. The module is available in two versions: with an index R system connection and for free air discharge to the room. It is installed directly downstream of the FANtec fan.
